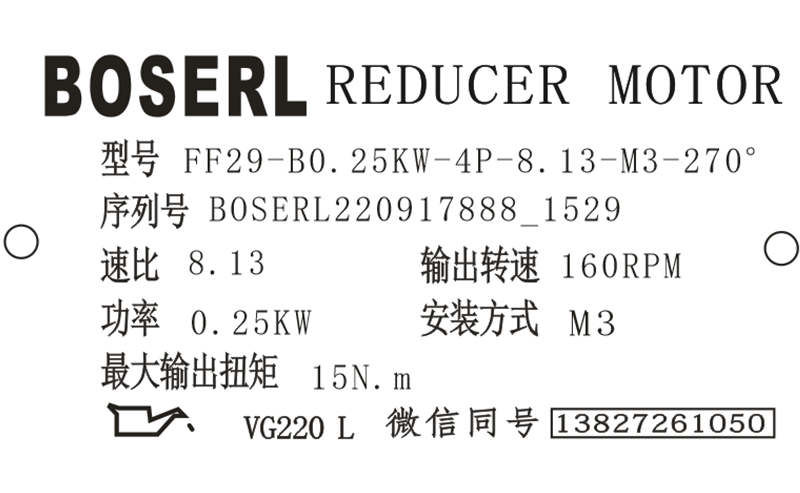

FF29減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF29減速機選型樣本。

FF29-YVPEJ0.25KW-4P-8.13-M3-270°

FF：系列代號

29：減速機規格代號

Y：電機

VPEJ：變頻剎車電機

0.25KW：電機功率

4P：電機級數

8.13：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

FF29減速機潤滑油型號：

FF29減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF29減速機選型樣本中列出了安裝位置從M1到M6FF29減速機相應的潤滑油加注標準，請自行下載查看。平行軸斜齒輪減速機

FF29減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據FF29減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“FF29減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。

FF29減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

FF29減速機推薦使用的潤滑油，其等級和粘度指標見下表：

FF29減速機使用說明：

FF29減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

FF29減速機警告說明：由于FF29減速機發熱或FF29減速機油溫過高可能引起燙傷；對FF29減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

FF29減速機注意事項：若未注入正確的FF29減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

FF29減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見FF29減速機說明書安裝位置章節中的內容。剎車電機減速機

FF29減速機的螺母：立式安裝FF29減速機輸出法蘭螺母規格M8；FF29減速機螺母/螺母擰緊扭矩強度等級10.9。

FF29減速機型號：

AFF27-Y0.12KW，AFF27-Y0.18KW，AFF27-Y0.25KW，AFF27-Y0.37KW，AFF27-Y0.55KW，AFF27-Y0.75KW，AFF27-Y1.1KW，AFF27-Y1.5KW，AFF27-Y2.2KW，AFF27-Y3KW，AFF27-YB100M4，AFF27-YB63M4，AFF27-YB71M4，AFF27-YB80M4，AFF27-YB90M4，AFF27-YDP100M4，AFF27-YDP63M4，AFF27-YDP71M4，AFF27-YDP80M4，AFF27-YDP90M4，AFF27-YE100M4，AFF27-YE63M4，AFF27-YE71M4，AFF27-YE80M4，AFF27-YE90M4，AFF27-YEJ100M4，AFF27-YEJ63M4，AFF27-YEJ71M4，AFF27-YEJ80M4，AFF27-YEJ90M4，AFF27-YEJB100M4，AFF27-YEJB63M4，AFF27-YEJB71M4，AFF27-YEJB80M4，AFF27-YEJB90M4，AFF27-YP100M4，AFF27-YP63M4，AFF27-YP71M4，AFF27-YP80M4，AFF27-YP90M4，AFF27-YPB100M4，AFF27-YPB63M4，AFF27-YPB71M4，AFF27-YPB80M4，AFF27-YPB90M4，AFF27-YPE100M4，AFF27-YPE63M4，AFF27-YPE71M4，AFF27-YPE80M4，AFF27-YPE90M4，AFF27-YS100M4，AFF27-YS63M4，AFF27-YS71M4，AFF27-YS80M4，AFF27-YS90M4，AFF27-YVB100M4，AFF27-YVB63M4，AFF27-YVB71M4，AFF27-YVB80M4，AFF27-YVB90M4，AFF27-YVP100M4，AFF27-YVP63M4，AFF27-YVP71M4，AFF27-YVP80M4，AFF27-YVP90M4，AFF27-YVPEJ100M4，AFF27-YVPEJ63M4，AFF27-YVPEJ71M4，AFF27-YVPEJ80M4，AFF27-YVPEJ90M4，AFF27-Y63M4，AFF27-Y71M4，AFF27-Y80M4，AFF27-Y90M4，AFF27-Y100M4，NFF27-Y0.12KW，NFF27-Y0.18KW，NFF27-Y0.25KW，NFF27-Y0.37KW，NFF27-Y0.55KW，NFF27-Y0.75KW，NFF27-Y1.1KW，NFF27-Y1.5KW，NFF27-Y2.2KW，NFF27-Y3KW，NFF27-YB100M4，NFF27-YB63M4，NFF27-YB71M4，NFF27-YB80M4，NFF27-YB90M4，NFF27-YDP100M4，NFF27-YDP63M4，NFF27-YDP71M4，NFF27-YDP80M4，NFF27-YDP90M4，NFF27-YE100M4，NFF27-YE63M4，NFF27-YE71M4，NFF27-YE80M4，NFF27-YE90M4，NFF27-YEJ100M4，NFF27-YEJ63M4，NFF27-YEJ71M4，NFF27-YEJ80M4，NFF27-YEJ90M4，NFF27-YEJB100M4，NFF27-YEJB63M4，NFF27-YEJB71M4，NFF27-YEJB80M4，NFF27-YEJB90M4，NFF27-YP100M4，NFF27-YP63M4，NFF27-YP71M4，NFF27-YP80M4，NFF27-YP90M4，NFF27-YPB100M4，NFF27-YPB63M4，NFF27-YPB71M4，NFF27-YPB80M4，NFF27-YPB90M4，NFF27-YPE100M4，NFF27-YPE63M4，NFF27-YPE71M4，NFF27-YPE80M4，NFF27-YPE90M4，NFF27-YS100M4，NFF27-YS63M4，NFF27-YS71M4，NFF27-YS80M4，NFF27-YS90M4，NFF27-YVB100M4，NFF27-YVB63M4，NFF27-YVB71M4，NFF27-YVB80M4，NFF27-YVB90M4，NFF27-YVP100M4，NFF27-YVP63M4，NFF27-YVP71M4，NFF27-YVP80M4，NFF27-YVP90M4，NFF27-YVPEJ100M4，NFF27-YVPEJ63M4，NFF27-YVPEJ71M4，NFF27-YVPEJ80M4，NFF27-YVPEJ90M4，NFF27-Y63M4，NFF27-Y71M4，NFF27-Y80M4，NFF27-Y90M4，NFF27-Y100M4，WFF27-Y0.12KW，WFF27-Y0.18KW，WFF27-Y0.25KW，WFF27-Y0.37KW，WFF27-Y0.55KW，WFF27-Y0.75KW，WFF27-Y1.1KW，WFF27-Y1.5KW，WFF27-Y2.2KW，WFF27-Y3KW，WFF27-YB100M4，WFF27-YB63M4，WFF27-YB71M4，WFF27-YB80M4，WFF27-YB90M4，WFF27-YDP100M4，WFF27-YDP63M4，WFF27-YDP71M4，WFF27-YDP80M4，WFF27-YDP90M4，WFF27-YE100M4，WFF27-YE63M4，WFF27-YE71M4，WFF27-YE80M4，WFF27-YE90M4，WFF27-YEJ100M4，WFF27-YEJ63M4，WFF27-YEJ71M4，WFF27-YEJ80M4，WFF27-YEJ90M4，WFF27-YEJB100M4，WFF27-YEJB63M4，WFF27-YEJB71M4，WFF27-YEJB80M4，WFF27-YEJB90M4，WFF27-YP100M4，WFF27-YP63M4，WFF27-YP71M4，WFF27-YP80M4，WFF27-YP90M4，WFF27-YPB100M4，WFF27-YPB63M4，WFF27-YPB71M4，WFF27-YPB80M4，WFF27-YPB90M4，WFF27-YPE100M4，WFF27-YPE63M4，WFF27-YPE71M4，WFF27-YPE80M4，WFF27-YPE90M4，WFF27-YS100M4，WFF27-YS63M4，WFF27-YS71M4，WFF27-YS80M4，WFF27-YS90M4，WFF27-YVB100M4，WFF27-YVB63M4，WFF27-YVB71M4，WFF27-YVB80M4，WFF27-YVB90M4，WFF27-YVP100M4，WFF27-YVP63M4，WFF27-YVP71M4，WFF27-YVP80M4，WFF27-YVP90M4，WFF27-YVPEJ100M4，WFF27-YVPEJ63M4，WFF27-YVPEJ71M4，WFF27-YVPEJ80M4，WFF27-YVPEJ90M4，WFF27-Y63M4，WFF27-Y71M4，WFF27-Y80M4，WFF27-Y90M4，WFF27-Y100M4，SFF27-Y0.12KW，SFF27-Y0.18KW，SFF27-Y0.25KW，SFF27-Y0.37KW，SFF27-Y0.55KW，SFF27-Y0.75KW，SFF27-Y1.1KW，SFF27-Y1.5KW，SFF27-Y2.2KW，SFF27-Y3KW，SFF27-YB100M4，SFF27-YB63M4，SFF27-YB71M4，SFF27-YB80M4，SFF27-YB90M4，SFF27-YDP100M4，SFF27-YDP63M4，SFF27-YDP71M4，SFF27-YDP80M4，SFF27-YDP90M4，SFF27-YE100M4，SFF27-YE63M4，SFF27-YE71M4，SFF27-YE80M4，SFF27-YE90M4，SFF27-YEJ100M4，SFF27-YEJ63M4，SFF27-YEJ71M4，SFF27-YEJ80M4，SFF27-YEJ90M4，SFF27-YEJB100M4，SFF27-YEJB63M4，SFF27-YEJB71M4，SFF27-YEJB80M4，SFF27-YEJB90M4，SFF27-YP100M4，SFF27-YP63M4，SFF27-YP71M4，SFF27-YP80M4，SFF27-YP90M4，SFF27-YPB100M4，SFF27-YPB63M4，SFF27-YPB71M4，SFF27-YPB80M4，SFF27-YPB90M4，SFF27-YPE100M4，SFF27-YPE63M4，SFF27-YPE71M4，SFF27-YPE80M4，SFF27-YPE90M4，SFF27-YS100M4，SFF27-YS63M4，SFF27-YS71M4，SFF27-YS80M4，SFF27-YS90M4，SFF27-YVB100M4，SFF27-YVB63M4，SFF27-YVB71M4，SFF27-YVB80M4，SFF27-YVB90M4，SFF27-YVP100M4，SFF27-YVP63M4，SFF27-YVP71M4，SFF27-YVP80M4，SFF27-YVP90M4，SFF27-YVPEJ100M4，SFF27-YVPEJ63M4，SFF27-YVPEJ71M4，SFF27-YVPEJ80M4，SFF27-YVPEJ90M4，SFF27-Y63M4，SFF27-Y71M4，SFF27-Y80M4，SFF27-Y90M4，SFF27-Y100M4，GFF29-Y0.12KW，GFF29-Y0.18KW，GFF29-Y0.25KW，GFF29-Y0.37KW，GFF29-Y0.55KW，GFF29-Y0.75KW，GFF29-Y1.1KW，GFF29-Y1.5KW，GFF29-Y2.2KW，GFF29-Y3KW，GFF29-YB100M4，GFF29-YB63M4，GFF29-YB71M4，GFF29-YB80M4，GFF29-YB90M4，GFF29-YDP100M4，GFF29-YDP63M4，GFF29-YDP71M4，GFF29-YDP80M4，GFF29-YDP90M4，GFF29-YE100M4，GFF29-YE63M4，GFF29-YE71M4，GFF29-YE80M4，GFF29-YE90M4，GFF29-YEJ100M4，GFF29-YEJ63M4，GFF29-YEJ71M4，GFF29-YEJ80M4，GFF29-YEJ90M4，GFF29-YEJB100M4，GFF29-YEJB63M4，GFF29-YEJB71M4，GFF29-YEJB80M4，GFF29-YEJB90M4，GFF29-YP100M4，GFF29-YP63M4，GFF29-YP71M4，GFF29-YP80M4，GFF29-YP90M4，GFF29-YPB100M4，GFF29-YPB63M4，GFF29-YPB71M4，GFF29-YPB80M4，GFF29-YPB90M4，GFF29-YPE100M4，GFF29-YPE63M4，GFF29-YPE71M4，GFF29-YPE80M4，GFF29-YPE90M4，GFF29-YS100M4，GFF29-YS63M4，GFF29-YS71M4，GFF29-YS80M4，GFF29-YS90M4，GFF29-YVB100M4，GFF29-YVB63M4，GFF29-YVB71M4，GFF29-YVB80M4，GFF29-YVB90M4，GFF29-YVP100M4，GFF29-YVP63M4，GFF29-YVP71M4，GFF29-YVP80M4，GFF29-YVP90M4，GFF29-YVPEJ100M4，GFF29-YVPEJ63M4，GFF29-YVPEJ71M4，GFF29-YVPEJ80M4，GFF29-YVPEJ90M4，GFF29-Y63M4，GFF29-Y71M4，GFF29-Y80M4，GFF29-Y90M4，GFF29-Y100M4。

FF29減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jinmiba.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F29減速機
