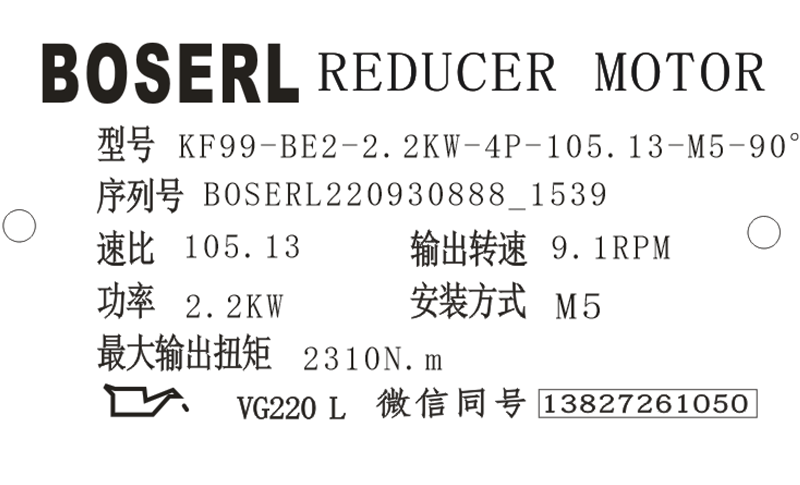

KF99減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF99減速器選型樣本。

KF99-BE2-2.2KW-4P-105.13-M5-90°

KF：系列代號

99：減速機規格代號

BE2：電機

2.2KW：電機功率

4P：電機級數

105.13：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

KF99減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動KF99減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

KF99減速器安裝操作的正確方法：

KF99減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

KF99減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的KF99減速器選型樣本”）。直角減速機

KF99減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

KF99減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列KF99減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的KF99減速器，啟動KF99減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機

KF99減速器型號：

KWF97-Y1.1KWF，KWF97-Y1.5KWF，KWF97-Y100M4，KWF97-Y112M4，KWF97-Y11KWF，KWF97-Y132M4，KWF97-Y15KWF，KWF97-Y160M4，KWF97-Y18.5KWF，KWF97-Y180M4，KWF97-Y2.2KWF，KWF97-Y200M4，KWF97-Y22KWF，KWF97-Y30KWF，KWF97-Y3KWF，KWF97-Y4KWF，KWF97-Y5.5KWF，KWF97-Y7.5KWF，KWF97-Y80M4，KWF97-Y90M4，KWF97-YB100M4，KWF97-YB112M4，KWF97-YB132M4，KWF97-YB160M4，KWF97-YB180M4，KWF97-YB200M4，KWF97-YB80M4，KWF97-YB90M4，KWF97-YDP100M4，KWF97-YDP112M4，KWF97-YDP132M4，KWF97-YDP160M4，KWF97-YDP180M4，KWF97-YDP200M4，KWF97-YDP80M4，KWF97-YDP90M4，KWF97-YE100M4，KWF97-YE112M4，KWF97-YE132M4，KWF97-YE160M4，KWF97-YE180M4，KWF97-YE200M4，KWF97-YE80M4，KWF97-YE90M4，KWF97-YEJ100M4，KWF97-YEJ112M4，KWF97-YEJ132M4，KWF97-YEJ160M4，KWF97-YEJ180M4，KWF97-YEJ200M4，KWF97-YEJ80M4，KWF97-YEJ90M4，KWF97-YEJB100M4，KWF97-YEJB112M4，KWF97-YEJB132M4，KWF97-YEJB160M4，KWF97-YEJB180M4，KWF97-YEJB200M4，KWF97-YEJB80M4，KWF97-YEJB90M4，KWF97-YP100M4，KWF97-YP112M4，KWF97-YP132M4，KWF97-YP160M4，KWF97-YP180M4，KWF97-YP200M4，KWF97-YP80M4，KWF97-YP90M4，KWF97-YPB100M4，KWF97-YPB112M4，KWF97-YPB132M4，KWF97-YPB160M4，KWF97-YPB180M4，KWF97-YPB200M4，KWF97-YPB80M4，KWF97-YPB90M4，KWF97-YPE100M4，KWF97-YPE112M4，KWF97-YPE132M4，KWF97-YPE160M4，KWF97-YPE180M4，KWF97-YPE200M4，KWF97-YPE80M4，KWF97-YPE90M4，KWF97-YS100M4，KWF97-YS112M4，KWF97-YS132M4，KWF97-YS160M4，KWF97-YS180M4，KWF97-YS200M4，KWF97-YS80M4，KWF97-YS90M4，KWF97-YVB100M4，KWF97-YVB112M4，KWF97-YVB132M4，KWF97-YVB160M4，KWF97-YVB180M4，KWF97-YVB200M4，KWF97-YVB80M4，KWF97-YVB90M4，KWF97-YVP100M4，KWF97-YVP112M4，KWF97-YVP132M4，KWF97-YVP160M4，KWF97-YVP180M4，KWF97-YVP200M4，KWF97-YVP80M4，KWF97-YVP90M4，KWF97-YVPEJ100M4，KWF97-YVPEJ112M4，KWF97-YVPEJ132M4，KWF97-YVPEJ160M4，KWF97-YVPEJ180M4，KWF97-YVPEJ200M4，KWF97-YVPEJ80M4，KWF97-YVPEJ90M4，XDKF97-Y1.1KWF，XDKF97-Y1.5KWF，XDKF97-Y100M4，XDKF97-Y112M4，XDKF97-Y11KWF，XDKF97-Y132M4，XDKF97-Y15KWF，XDKF97-Y160M4，XDKF97-Y18.5KWF，XDKF97-Y180M4，XDKF97-Y2.2KWF，XDKF97-Y200M4，XDKF97-Y22KWF，XDKF97-Y30KWF，XDKF97-Y3KWF，XDKF97-Y4KWF，XDKF97-Y5.5KWF，XDKF97-Y7.5KWF，XDKF97-Y80M4，XDKF97-Y90M4，XDKF97-YB100M4，XDKF97-YB112M4，XDKF97-YB132M4，XDKF97-YB160M4，XDKF97-YB180M4，XDKF97-YB200M4，XDKF97-YB80M4，XDKF97-YB90M4，XDKF97-YDP100M4，XDKF97-YDP112M4，XDKF97-YDP132M4，XDKF97-YDP160M4，XDKF97-YDP180M4，XDKF97-YDP200M4，XDKF97-YDP80M4，XDKF97-YDP90M4，XDKF97-YE100M4，XDKF97-YE112M4，XDKF97-YE132M4，XDKF97-YE160M4，XDKF97-YE180M4，XDKF97-YE200M4，XDKF97-YE80M4，XDKF97-YE90M4，XDKF97-YEJ100M4，XDKF97-YEJ112M4，XDKF97-YEJ132M4，XDKF97-YEJ160M4，XDKF97-YEJ180M4，XDKF97-YEJ200M4，XDKF97-YEJ80M4，XDKF97-YEJ90M4，XDKF97-YEJB100M4，XDKF97-YEJB112M4，XDKF97-YEJB132M4，XDKF97-YEJB160M4，XDKF97-YEJB180M4，XDKF97-YEJB200M4，XDKF97-YEJB80M4，XDKF97-YEJB90M4，XDKF97-YP100M4，XDKF97-YP112M4，XDKF97-YP132M4，XDKF97-YP160M4，XDKF97-YP180M4，XDKF97-YP200M4，XDKF97-YP80M4，XDKF97-YP90M4，XDKF97-YPB100M4，XDKF97-YPB112M4，XDKF97-YPB132M4，XDKF97-YPB160M4，XDKF97-YPB180M4，XDKF97-YPB200M4，XDKF97-YPB80M4，XDKF97-YPB90M4，XDKF97-YPE100M4，XDKF97-YPE112M4，XDKF97-YPE132M4，XDKF97-YPE160M4，XDKF97-YPE180M4，XDKF97-YPE200M4，XDKF97-YPE80M4，XDKF97-YPE90M4，XDKF97-YS100M4，XDKF97-YS112M4，XDKF97-YS132M4，XDKF97-YS160M4，XDKF97-YS180M4，XDKF97-YS200M4，XDKF97-YS80M4，XDKF97-YS90M4，XDKF97-YVB100M4，XDKF97-YVB112M4，XDKF97-YVB132M4，XDKF97-YVB160M4，XDKF97-YVB180M4，XDKF97-YVB200M4，XDKF97-YVB80M4，XDKF97-YVB90M4，XDKF97-YVP100M4，XDKF97-YVP112M4，XDKF97-YVP132M4，XDKF97-YVP160M4，XDKF97-YVP180M4，XDKF97-YVP200M4，XDKF97-YVP80M4，XDKF97-YVP90M4，XDKF97-YVPEJ100M4，XDKF97-YVPEJ112M4，XDKF97-YVPEJ132M4，XDKF97-YVPEJ160M4，XDKF97-YVPEJ180M4，XDKF97-YVPEJ200M4，XDKF97-YVPEJ80M4，XDKF97-YVPEJ90M4，YQKF97-Y1.1KWF，YQKF97-Y1.5KWF，YQKF97-Y100M4，YQKF97-Y112M4，YQKF97-Y11KWF，YQKF97-Y132M4，YQKF97-Y15KWF，YQKF97-Y160M4，YQKF97-Y18.5KWF，YQKF97-Y180M4，YQKF97-Y2.2KWF，YQKF97-Y200M4，YQKF97-Y22KWF，YQKF97-Y30KWF，YQKF97-Y3KWF，YQKF97-Y4KWF，YQKF97-Y5.5KWF，YQKF97-Y7.5KWF，YQKF97-Y80M4，YQKF97-Y90M4，YQKF97-YB100M4，YQKF97-YB112M4，YQKF97-YB132M4，YQKF97-YB160M4，YQKF97-YB180M4，YQKF97-YB200M4，YQKF97-YB80M4，YQKF97-YB90M4，YQKF97-YDP100M4，YQKF97-YDP112M4，YQKF97-YDP132M4，YQKF97-YDP160M4，YQKF97-YDP180M4，YQKF97-YDP200M4，YQKF97-YDP80M4，YQKF97-YDP90M4，YQKF97-YE100M4，YQKF97-YE112M4，YQKF97-YE132M4，YQKF97-YE160M4，YQKF97-YE180M4，YQKF97-YE200M4，YQKF97-YE80M4，YQKF97-YE90M4，YQKF97-YEJ100M4，YQKF97-YEJ112M4，YQKF97-YEJ132M4，YQKF97-YEJ160M4，YQKF97-YEJ180M4，YQKF97-YEJ200M4，YQKF97-YEJ80M4，YQKF97-YEJ90M4，YQKF97-YEJB100M4，YQKF97-YEJB112M4，YQKF97-YEJB132M4，YQKF97-YEJB160M4，YQKF97-YEJB180M4，YQKF97-YEJB200M4，YQKF97-YEJB80M4，YQKF97-YEJB90M4，YQKF97-YP100M4，YQKF97-YP112M4，YQKF97-YP132M4，YQKF97-YP160M4，YQKF97-YP180M4，YQKF97-YP200M4，YQKF97-YP80M4，YQKF97-YP90M4，YQKF97-YPB100M4，YQKF97-YPB112M4，YQKF97-YPB132M4，YQKF97-YPB160M4，YQKF97-YPB180M4，YQKF97-YPB200M4，YQKF97-YPB80M4，YQKF97-YPB90M4，YQKF97-YPE100M4，YQKF97-YPE112M4，YQKF97-YPE132M4，YQKF97-YPE160M4，YQKF97-YPE180M4，YQKF97-YPE200M4，YQKF97-YPE80M4，YQKF97-YPE90M4，YQKF97-YS100M4，YQKF97-YS112M4，YQKF97-YS132M4，YQKF97-YS160M4，YQKF97-YS180M4，YQKF97-YS200M4，YQKF97-YS80M4，YQKF97-YS90M4，YQKF97-YVB100M4，YQKF97-YVB112M4，YQKF97-YVB132M4，YQKF97-YVB160M4，YQKF97-YVB180M4，YQKF97-YVB200M4，YQKF97-YVB80M4，YQKF97-YVB90M4，YQKF97-YVP100M4，YQKF97-YVP112M4，YQKF97-YVP132M4，YQKF97-YVP160M4，YQKF97-YVP180M4，YQKF97-YVP200M4，YQKF97-YVP80M4，YQKF97-YVP90M4，YQKF97-YVPEJ100M4，YQKF97-YVPEJ112M4，YQKF97-YVPEJ132M4，YQKF97-YVPEJ160M4，YQKF97-YVPEJ180M4，YQKF97-YVPEJ200M4，YQKF97-YVPEJ80M4，YQKF97-YVPEJ90M4，JCKF97-Y1.1KWF，JCKF97-Y1.5KWF，JCKF97-Y100M4，JCKF97-Y112M4，JCKF97-Y11KWF，JCKF97-Y132M4，JCKF97-Y15KWF，JCKF97-Y160M4，JCKF97-Y18.5KWF，JCKF97-Y180M4，JCKF97-Y2.2KWF，JCKF97-Y200M4，JCKF97-Y22KWF，JCKF97-Y30KWF，JCKF97-Y3KWF，JCKF97-Y4KWF，JCKF97-Y5.5KWF，JCKF97-Y7.5KWF，JCKF97-Y80M4，JCKF97-Y90M4，JCKF97-YB100M4，JCKF97-YB112M4，JCKF97-YB132M4，JCKF97-YB160M4，JCKF97-YB180M4，JCKF97-YB200M4，JCKF97-YB80M4，JCKF97-YB90M4，JCKF97-YDP100M4，JCKF97-YDP112M4，JCKF97-YDP132M4，JCKF97-YDP160M4，JCKF97-YDP180M4，JCKF97-YDP200M4，JCKF97-YDP80M4，JCKF97-YDP90M4，JCKF97-YE100M4，JCKF97-YE112M4，JCKF97-YE132M4，JCKF97-YE160M4，JCKF97-YE180M4，JCKF97-YE200M4，JCKF97-YE80M4，JCKF97-YE90M4，JCKF97-YEJ100M4，JCKF97-YEJ112M4，JCKF97-YEJ132M4，JCKF97-YEJ160M4，JCKF97-YEJ180M4，JCKF97-YEJ200M4，JCKF97-YEJ80M4，JCKF97-YEJ90M4，JCKF97-YEJB100M4，JCKF97-YEJB112M4，JCKF97-YEJB132M4，JCKF97-YEJB160M4，JCKF97-YEJB180M4，JCKF97-YEJB200M4，JCKF97-YEJB80M4，JCKF97-YEJB90M4，JCKF97-YP100M4，JCKF97-YP112M4，JCKF97-YP132M4，JCKF97-YP160M4，JCKF97-YP180M4，JCKF97-YP200M4，JCKF97-YP80M4，JCKF97-YP90M4，JCKF97-YPB100M4，JCKF97-YPB112M4，JCKF97-YPB132M4，JCKF97-YPB160M4，JCKF97-YPB180M4，JCKF97-YPB200M4，JCKF97-YPB80M4，JCKF97-YPB90M4，JCKF97-YPE100M4，JCKF97-YPE112M4，JCKF97-YPE132M4，JCKF97-YPE160M4，JCKF97-YPE180M4，JCKF97-YPE200M4，JCKF97-YPE80M4，JCKF97-YPE90M4，JCKF97-YS100M4，JCKF97-YS112M4，JCKF97-YS132M4，JCKF97-YS160M4，JCKF97-YS180M4，JCKF97-YS200M4，JCKF97-YS80M4，JCKF97-YS90M4，JCKF97-YVB100M4，JCKF97-YVB112M4，JCKF97-YVB132M4，JCKF97-YVB160M4，JCKF97-YVB180M4，JCKF97-YVB200M4，JCKF97-YVB80M4，JCKF97-YVB90M4，JCKF97-YVP100M4，JCKF97-YVP112M4，JCKF97-YVP132M4，JCKF97-YVP160M4，JCKF97-YVP180M4，JCKF97-YVP200M4，JCKF97-YVP80M4，JCKF97-YVP90M4，JCKF97-YVPEJ100M4，JCKF97-YVPEJ112M4，JCKF97-YVPEJ132M4，JCKF97-YVPEJ160M4，JCKF97-YVPEJ180M4，JCKF97-YVPEJ200M4，JCKF97-YVPEJ80M4，JCKF97-YVPEJ90M4，KF99-Y1.1KWF，KF99-Y1.5KWF，KF99-Y100M4，KF99-Y112M4，KF99-Y11KWF，KF99-Y132M4，KF99-Y15KWF，KF99-Y160M4，KF99-Y18.5KWF，KF99-Y180M4，KF99-Y2.2KWF，KF99-Y200M4，KF99-Y22KWF，KF99-Y30KWF，KF99-Y3KWF，KF99-Y4KWF，KF99-Y5.5KWF，KF99-Y7.5KWF，KF99-Y80M4，KF99-Y90M4，KF99-YB100M4，KF99-YB112M4，KF99-YB132M4，KF99-YB160M4，KF99-YB180M4，KF99-YB200M4，KF99-YB80M4，KF99-YB90M4，KF99-YDP100M4，KF99-YDP112M4，KF99-YDP132M4，KF99-YDP160M4，KF99-YDP180M4，KF99-YDP200M4，KF99-YDP80M4，KF99-YDP90M4，KF99-YE100M4，KF99-YE112M4，KF99-YE132M4，KF99-YE160M4，KF99-YE180M4，KF99-YE200M4，KF99-YE80M4，KF99-YE90M4，KF99-YEJ100M4，KF99-YEJ112M4，KF99-YEJ132M4，KF99-YEJ160M4，KF99-YEJ180M4，KF99-YEJ200M4，KF99-YEJ80M4，KF99-YEJ90M4，KF99-YEJB100M4，KF99-YEJB112M4，KF99-YEJB132M4，KF99-YEJB160M4，KF99-YEJB180M4，KF99-YEJB200M4，KF99-YEJB80M4，KF99-YEJB90M4，KF99-YP100M4，KF99-YP112M4，KF99-YP132M4，KF99-YP160M4，KF99-YP180M4，KF99-YP200M4，KF99-YP80M4，KF99-YP90M4，KF99-YPB100M4，KF99-YPB112M4，KF99-YPB132M4，KF99-YPB160M4，KF99-YPB180M4，KF99-YPB200M4，KF99-YPB80M4，KF99-YPB90M4，KF99-YPE100M4，KF99-YPE112M4，KF99-YPE132M4，KF99-YPE160M4，KF99-YPE180M4，KF99-YPE200M4，KF99-YPE80M4，KF99-YPE90M4，KF99-YS100M4，KF99-YS112M4，KF99-YS132M4，KF99-YS160M4，KF99-YS180M4，KF99-YS200M4，KF99-YS80M4，KF99-YS90M4，KF99-YVB100M4，KF99-YVB112M4，KF99-YVB132M4，KF99-YVB160M4，KF99-YVB180M4，KF99-YVB200M4，KF99-YVB80M4，KF99-YVB90M4，KF99-YVP100M4，KF99-YVP112M4，KF99-YVP132M4，KF99-YVP160M4，KF99-YVP180M4，KF99-YVP200M4，KF99-YVP80M4，KF99-YVP90M4，KF99-YVPEJ100M4，KF99-YVPEJ112M4，KF99-YVPEJ132M4，KF99-YVPEJ160M4，KF99-YVPEJ180M4，KF99-YVPEJ200M4，KF99-YVPEJ80M4，KF99-YVPEJ90M4，KF97SF80，KF97SF90，KF97SF100，KF97SF112，KF97SF115，KF97SF140，KF97SF160，KF97SF190。

KF99減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jinmiba.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K99減速機
