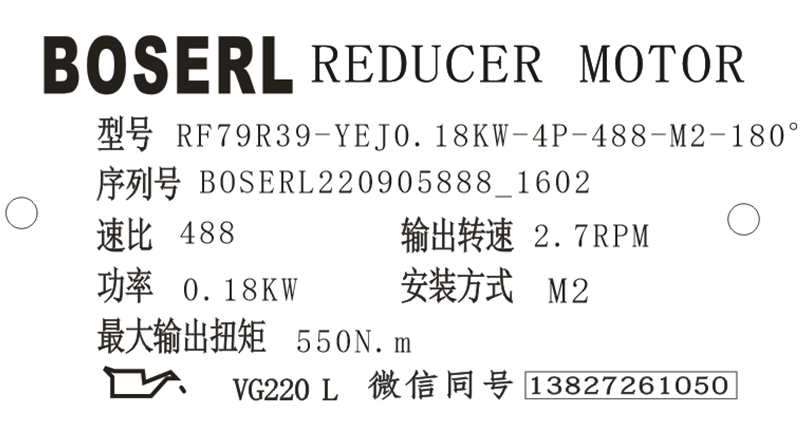

RF79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF79R39減速機選型樣本。

RF79R39-YEJ0.18KW-4P-488-M2-180°

RF/R：系列代號

79/39：減速機規格代號

Y：電機

EJ：電機帶剎車

0.18KW：電機功率

4P：電機級數

488：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

RF79R39減速機檢查維修：

收到RF79R39減速機后請立即檢查送貨有無運輸損壞。如有損壞請立即通知運輸公司。必要情況下不得對設備進行調試運行。擰緊運輸吊耳。由于吊耳的設計負載僅針對電機/減速電機重量，因此不得額外增加負荷。已經安裝好的吊環螺栓符合GB825的規定。原則上要遵守標準中所注明的負荷和規定。如果減速電機上裝有兩個吊耳或者吊環螺栓，則運輸時必須用兩個吊環同時進行吊裝。根據GB825規定，吊裝件的拉力方向不得超過45度斜角。必要情況下，應使用相應的、有足夠承載力的運輸工具。調試前拆除所有運輸緊固件。直連減速機

RF79R39減速機調試/運行：在沒有連接外部設備的狀態下檢查轉向是否正確。檢查時注意轉動過程中是否產生異常摩擦聲。調試運行時，若未安裝輸出部件，則應緊固鍵。檢測裝置和保護裝置即使在試運行狀態下亦不得關閉。若出現不同與正常運行狀態的變化（例如升溫、噪音、震動），則必須在可疑情況下關閉減速電機。查明原因，并在必要情況下與BOSERL公司聯系。

RF79R39減速機的操作工作只可由經過培訓的專業人員執行。專業人員是指熟悉安裝位置、機械安裝、產品的故障排除與維護并具備下列資質的人員： 接受過機械專業的培訓（如機械工程師或機電工程師）并通過結業考試。違規拆必要的防護罩板、設備的不當使用以及錯誤安裝或操作設備均可導致嚴重的人員傷害或財產損失。立式減速機

RF79R39減速機聯軸器AL/AM/AQ的檢查/維修：軸承、聯軸器，檢查是否可能因軸承損壞產生運轉噪音，檢查聯軸器是否漏油；彈性體，檢查圓周齒隙，檢查聯軸器的彈性體；軸承、油封、彈性體，更換滾動軸承潤滑脂，更換油封（不要安裝在同樣工作軌跡上），更換彈性體。

RF79R39減速機輸入端裝置AD的檢查/維修：軸承、聯軸器，檢查是否可能因軸承損壞產生運轉噪音，檢查聯軸器是否漏油；軸承，更換滾動軸承油脂；油封，更換油封。為了避免高徑向力：請按圖B裝配齒輪或者鏈輪。

RF79R39減速機維護檢查：

RF79R39減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。齒輪減速電機

RF79R39減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的RF79R39減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

RF79R39減速機潤滑油更換周期：下圖為在一般條件下標準RF79R39減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。

RF79R39減速機型號：

RF79R39-Y63M4，RF79R39-Y71M4，RF79R39-Y80M4，RF79RF39-Y0.12KW，RF79RF39-Y0.18KW，RF79RF39-Y0.25KW，RF79RF39-Y0.39KW，RF79RF39-Y0.55KW，RF79RF39-Y63M4，RF79RF39-Y71M4，RF79RF39-Y80M4，RF79RF39-YB63M4，RF79RF39-YB71M4，RF79RF39-YB80M4，RF79RF39-YDP63M4，RF79RF39-YDP71M4，RF79RF39-YDP80M4，RF79RF39-YE63M4，RF79RF39-YE71M4，RF79RF39-YE80M4，RF79RF39-YEJ63M4，RF79RF39-YEJ71M4，RF79RF39-YEJ80M4，RF79RF39-YEJB63M4，RF79RF39-YEJB71M4，RF79RF39-YEJB80M4，RF79RF39-YP63M4，RF79RF39-YP71M4，RF79RF39-YP80M4，RF79RF39-YPB63M4，RF79RF39-YPB71M4，RF79RF39-YPB80M4，RF79RF39-YPE63M4，RF79RF39-YPE71M4，RF79RF39-YPE80M4，RF79RF39-YS63M4，RF79RF39-YS71M4，RF79RF39-YS80M4，RF79RF39-YVB63M4，RF79RF39-YVB71M4，RF79RF39-YVB80M4，RF79RF39-YVP63M4，RF79RF39-YVP71M4，RF79RF39-YVP80M4，RF79RF39-YVPEJ63M4，RF79RF39-YVPEJ71M4，RF79RF39-YVPEJ80M4，YQRF77R37-Y63M4，YQRF77R37-Y71M4，YQRF77R37-Y80M4，YQRF77RF37-Y0.12KW，YQRF77RF37-Y0.18KW，YQRF77RF37-Y0.25KW，YQRF77RF37-Y0.37KW，YQRF77RF37-Y0.55KW，YQRF77RF37-Y63M4，YQRF77RF37-Y71M4，YQRF77RF37-Y80M4，YQRF77RF37-YB63M4，YQRF77RF37-YB71M4，YQRF77RF37-YB80M4，YQRF77RF37-YDP63M4，YQRF77RF37-YDP71M4，YQRF77RF37-YDP80M4，YQRF77RF37-YE63M4，YQRF77RF37-YE71M4，YQRF77RF37-YE80M4，YQRF77RF37-YEJ63M4，YQRF77RF37-YEJ71M4，YQRF77RF37-YEJ80M4，YQRF77RF37-YEJB63M4，YQRF77RF37-YEJB71M4，YQRF77RF37-YEJB80M4，YQRF77RF37-YP63M4，YQRF77RF37-YP71M4，YQRF77RF37-YP80M4，YQRF77RF37-YPB63M4，YQRF77RF37-YPB71M4，YQRF77RF37-YPB80M4，YQRF77RF37-YPE63M4，YQRF77RF37-YPE71M4，YQRF77RF37-YPE80M4，YQRF77RF37-YS63M4，YQRF77RF37-YS71M4，YQRF77RF37-YS80M4，YQRF77RF37-YVB63M4，YQRF77RF37-YVB71M4，YQRF77RF37-YVB80M4，YQRF77RF37-YVP63M4，YQRF77RF37-YVP71M4，YQRF77RF37-YVP80M4，YQRF77RF37-YVPEJ63M4，YQRF77RF37-YVPEJ71M4，YQRF77RF37-YVPEJ80M4，ARF77R37-Y63M4，ARF77R37-Y71M4，ARF77R37-Y80M4，ARF77RF37-Y0.12KW，ARF77RF37-Y0.18KW，ARF77RF37-Y0.25KW，ARF77RF37-Y0.37KW，ARF77RF37-Y0.55KW，ARF77RF37-Y63M4，ARF77RF37-Y71M4，ARF77RF37-Y80M4，ARF77RF37-YB63M4，ARF77RF37-YB71M4，ARF77RF37-YB80M4，ARF77RF37-YDP63M4，ARF77RF37-YDP71M4，ARF77RF37-YDP80M4，ARF77RF37-YE63M4，ARF77RF37-YE71M4，ARF77RF37-YE80M4，ARF77RF37-YEJ63M4，ARF77RF37-YEJ71M4，ARF77RF37-YEJ80M4，ARF77RF37-YEJB63M4，ARF77RF37-YEJB71M4，ARF77RF37-YEJB80M4，ARF77RF37-YP63M4，ARF77RF37-YP71M4，ARF77RF37-YP80M4，ARF77RF37-YPB63M4，ARF77RF37-YPB71M4，ARF77RF37-YPB80M4，ARF77RF37-YPE63M4，ARF77RF37-YPE71M4，ARF77RF37-YPE80M4，ARF77RF37-YS63M4，ARF77RF37-YS71M4，ARF77RF37-YS80M4，ARF77RF37-YVB63M4，ARF77RF37-YVB71M4，ARF77RF37-YVB80M4，ARF77RF37-YVP63M4，ARF77RF37-YVP71M4，ARF77RF37-YVP80M4，ARF77RF37-YVPEJ63M4，ARF77RF37-YVPEJ71M4，ARF77RF37-YVPEJ80M4，SRF77R37-Y63M4，SRF77R37-Y71M4，SRF77R37-Y80M4，SRF77RF37-Y0.12KW，SRF77RF37-Y0.18KW，SRF77RF37-Y0.25KW，SRF77RF37-Y0.37KW，SRF77RF37-Y0.55KW，SRF77RF37-Y63M4，SRF77RF37-Y71M4，SRF77RF37-Y80M4，SRF77RF37-YB63M4，SRF77RF37-YB71M4，SRF77RF37-YB80M4，SRF77RF37-YDP63M4，SRF77RF37-YDP71M4，SRF77RF37-YDP80M4，SRF77RF37-YE63M4，SRF77RF37-YE71M4，SRF77RF37-YE80M4，SRF77RF37-YEJ63M4，SRF77RF37-YEJ71M4，SRF77RF37-YEJ80M4，SRF77RF37-YEJB63M4，SRF77RF37-YEJB71M4，SRF77RF37-YEJB80M4，SRF77RF37-YP63M4，SRF77RF37-YP71M4，SRF77RF37-YP80M4，SRF77RF37-YPB63M4，SRF77RF37-YPB71M4，SRF77RF37-YPB80M4，SRF77RF37-YPE63M4，SRF77RF37-YPE71M4，SRF77RF37-YPE80M4，SRF77RF37-YS63M4，SRF77RF37-YS71M4，SRF77RF37-YS80M4，SRF77RF37-YVB63M4，SRF77RF37-YVB71M4，SRF77RF37-YVB80M4，SRF77RF37-YVP63M4，SRF77RF37-YVP71M4，SRF77RF37-YVP80M4，SRF77RF37-YVPEJ63M4，SRF77RF37-YVPEJ71M4，SRF77RF37-YVPEJ80M4，XDRF77R37-Y63M4，XDRF77R37-Y71M4，XDRF77R37-Y80M4，XDRF77RF37-Y0.12KW，XDRF77RF37-Y0.18KW，XDRF77RF37-Y0.25KW，XDRF77RF37-Y0.37KW，XDRF77RF37-Y0.55KW，XDRF77RF37-Y63M4，XDRF77RF37-Y71M4，XDRF77RF37-Y80M4，XDRF77RF37-YB63M4，XDRF77RF37-YB71M4，XDRF77RF37-YB80M4，XDRF77RF37-YDP63M4，XDRF77RF37-YDP71M4，XDRF77RF37-YDP80M4，XDRF77RF37-YE63M4，XDRF77RF37-YE71M4，XDRF77RF37-YE80M4，XDRF77RF37-YEJ63M4，XDRF77RF37-YEJ71M4，XDRF77RF37-YEJ80M4，XDRF77RF37-YEJB63M4，XDRF77RF37-YEJB71M4，XDRF77RF37-YEJB80M4，XDRF77RF37-YP63M4，XDRF77RF37-YP71M4，XDRF77RF37-YP80M4，XDRF77RF37-YPB63M4，XDRF77RF37-YPB71M4，XDRF77RF37-YPB80M4，XDRF77RF37-YPE63M4，XDRF77RF37-YPE71M4，XDRF77RF37-YPE80M4，XDRF77RF37-YS63M4，XDRF77RF37-YS71M4，XDRF77RF37-YS80M4，XDRF77RF37-YVB63M4，XDRF77RF37-YVB71M4，XDRF77RF37-YVB80M4，XDRF77RF37-YVP63M4，XDRF77RF37-YVP71M4，XDRF77RF37-YVP80M4，XDRF77RF37-YVPEJ63M4，XDRF77RF37-YVPEJ71M4，XDRF77RF37-YVPEJ80M4，WRF77R37-Y63M4，WRF77R37-Y71M4，WRF77R37-Y80M4，WRF77RF37-Y0.12KW，WRF77RF37-Y0.18KW，WRF77RF37-Y0.25KW，WRF77RF37-Y0.37KW，WRF77RF37-Y0.55KW，WRF77RF37-Y63M4，WRF77RF37-Y71M4，WRF77RF37-Y80M4，WRF77RF37-YB63M4，WRF77RF37-YB71M4，WRF77RF37-YB80M4，WRF77RF37-YDP63M4，WRF77RF37-YDP71M4，WRF77RF37-YDP80M4，WRF77RF37-YE63M4，WRF77RF37-YE71M4，WRF77RF37-YE80M4，WRF77RF37-YEJ63M4，WRF77RF37-YEJ71M4，WRF77RF37-YEJ80M4，WRF77RF37-YEJB63M4，WRF77RF37-YEJB71M4，WRF77RF37-YEJB80M4，WRF77RF37-YP63M4，WRF77RF37-YP71M4，WRF77RF37-YP80M4，WRF77RF37-YPB63M4，WRF77RF37-YPB71M4，WRF77RF37-YPB80M4，WRF77RF37-YPE63M4，WRF77RF37-YPE71M4，WRF77RF37-YPE80M4，WRF77RF37-YS63M4，WRF77RF37-YS71M4，WRF77RF37-YS80M4，WRF77RF37-YVB63M4，WRF77RF37-YVB71M4，WRF77RF37-YVB80M4，WRF77RF37-YVP63M4，WRF77RF37-YVP71M4，WRF77RF37-YVP80M4，WRF77RF37-YVPEJ63M4，WRF77RF37-YVPEJ71M4，WRF77RF37-YVPEJ80M4，NRF77R37-Y63M4，NRF77R37-Y71M4，NRF77R37-Y80M4，NRF77RF37-Y0.12KW，NRF77RF37-Y0.18KW，NRF77RF37-Y0.25KW，NRF77RF37-Y0.37KW，NRF77RF37-Y0.55KW，NRF77RF37-Y63M4，NRF77RF37-Y71M4，NRF77RF37-Y80M4，NRF77RF37-YB63M4，NRF77RF37-YB71M4，NRF77RF37-YB80M4，NRF77RF37-YDP63M4，NRF77RF37-YDP71M4，NRF77RF37-YDP80M4，NRF77RF37-YE63M4，NRF77RF37-YE71M4，NRF77RF37-YE80M4，NRF77RF37-YEJ63M4，NRF77RF37-YEJ71M4，NRF77RF37-YEJ80M4，NRF77RF37-YEJB63M4，NRF77RF37-YEJB71M4，NRF77RF37-YEJB80M4，NRF77RF37-YP63M4，NRF77RF37-YP71M4，NRF77RF37-YP80M4，NRF77RF37-YPB63M4，NRF77RF37-YPB71M4，NRF77RF37-YPB80M4，NRF77RF37-YPE63M4，NRF77RF37-YPE71M4，NRF77RF37-YPE80M4，NRF77RF37-YS63M4，NRF77RF37-YS71M4，NRF77RF37-YS80M4，NRF77RF37-YVB63M4，NRF77RF37-YVB71M4，NRF77RF37-YVB80M4，NRF77RF37-YVP63M4，NRF77RF37-YVP71M4，NRF77RF37-YVP80M4，NRF77RF37-YVPEJ63M4，NRF77RF37-YVPEJ71M4，NRF77RF37-YVPEJ80M4，JCRF77R37-Y63M4，JCRF77R37-Y71M4，JCRF77R37-Y80M4，JCRF77RF37-Y0.12KW，JCRF77RF37-Y0.18KW，JCRF77RF37-Y0.25KW，JCRF77RF37-Y0.37KW，JCRF77RF37-Y0.55KW，JCRF77RF37-Y63M4，JCRF77RF37-Y71M4，JCRF77RF37-Y80M4，JCRF77RF37-YB63M4，JCRF77RF37-YB71M4，JCRF77RF37-YB80M4，JCRF77RF37-YDP63M4，JCRF77RF37-YDP71M4，JCRF77RF37-YDP80M4，JCRF77RF37-YE63M4，JCRF77RF37-YE71M4，JCRF77RF37-YE80M4，JCRF77RF37-YEJ63M4，JCRF77RF37-YEJ71M4，JCRF77RF37-YEJ80M4，JCRF77RF37-YEJB63M4，JCRF77RF37-YEJB71M4，JCRF77RF37-YEJB80M4，JCRF77RF37-YP63M4，JCRF77RF37-YP71M4，JCRF77RF37-YP80M4，JCRF77RF37-YPB63M4，JCRF77RF37-YPB71M4，JCRF77RF37-YPB80M4，JCRF77RF37-YPE63M4，JCRF77RF37-YPE71M4，JCRF77RF37-YPE80M4，JCRF77RF37-YS63M4，JCRF77RF37-YS71M4，JCRF77RF37-YS80M4，JCRF77RF37-YVB63M4，JCRF77RF37-YVB71M4，JCRF77RF37-YVB80M4，JCRF77RF37-YVP63M4，JCRF77RF37-YVP71M4，JCRF77RF37-YVP80M4，JCRF77RF37-YVPEJ63M4，JCRF77RF37-YVPEJ71M4，JCRF77RF37-YVPEJ80M4，RWF77RW37-Y63M4，RWF77RW37-Y71M4，RWF77RW37-Y80M4，RWF77RWF37-Y0.12KW，RWF77RWF37-Y0.18KW，RWF77RWF37-Y0.25KW，RWF77RWF37-Y0.37KW，RWF77RWF37-Y0.55KW，RWF77RWF37-Y63M4，RWF77RWF37-Y71M4，RWF77RWF37-Y80M4，RWF77RWF37-YB63M4，RWF77RWF37-YB71M4，RWF77RWF37-YB80M4，RWF77RWF37-YDP63M4，RWF77RWF37-YDP71M4，RWF77RWF37-YDP80M4，RWF77RWF37-YE63M4，RWF77RWF37-YE71M4，RWF77RWF37-YE80M4，RWF77RWF37-YEJ63M4，RWF77RWF37-YEJ71M4，RWF77RWF37-YEJ80M4，RWF77RWF37-YEJB63M4，RWF77RWF37-YEJB71M4，RWF77RWF37-YEJB80M4，RWF77RWF37-YP63M4，RWF77RWF37-YP71M4，RWF77RWF37-YP80M4，RWF77RWF37-YPB63M4，RWF77RWF37-YPB71M4，RWF77RWF37-YPB80M4，RWF77RWF37-YPE63M4，RWF77RWF37-YPE71M4，RWF77RWF37-YPE80M4，RWF77RWF37-YS63M4，RWF77RWF37-YS71M4，RWF77RWF37-YS80M4，RWF77RWF37-YVB63M4，RWF77RWF37-YVB71M4，RWF77RWF37-YVB80M4，RWF77RWF37-YVP63M4，RWF77RWF37-YVP71M4，RWF77RWF37-YVP80M4，RWF77RWF37-YVPEJ63M4，RWF77RWF37-YVPEJ71M4，RWF77RWF37-YVPEJ80M4。
