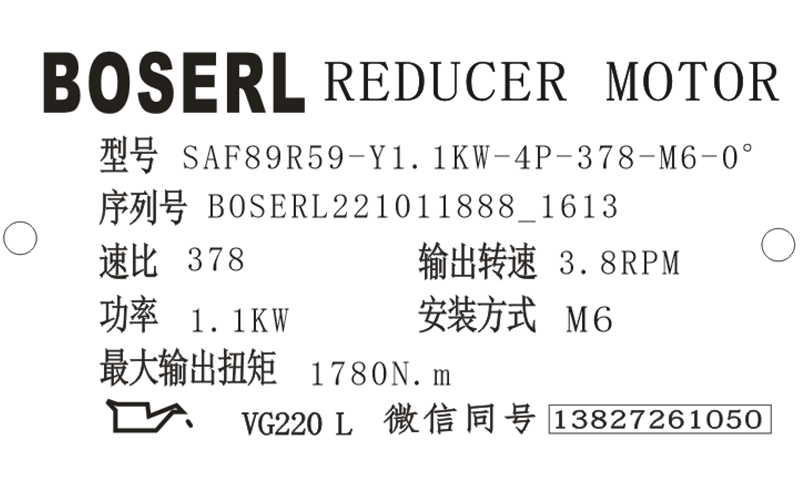

SAF89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SAF89R59減速機選型樣本。

SAF89R59-Y1.1KW-4P-378-M6-0°

SAF/R：系列代號

89/59：減速機規格代號

Y：電機

1.1KW：電機功率

4P：電機級數

378：減速機傳動比

M6：減速機安裝位置

0°：接線盒位置

SAF89R59減速機轉速低以及剎不住解決方案：

SAF89R59減速機轉速遠低于額定值：電壓過低，用萬用表測電動機輸入電壓，排查維修；負荷過大，若電流大于額定值10%，則是此原因,選用大容量電機；轉子斷條，更換轉子。齒輪減速電機

SAF89R59減速機剎車移動：來令片磨損，換新來令片；間隙過大，調整間隙；負載過大，重新設計；剎車表面歪斜，更換零件；下降重量過大，機構重新設計；選用機型錯誤，選用正確機型；環境溫度過高，改善環境溫度。

SAF89R59減速機電機合格證：

請注意！本產品使用前，務必先做好接地作業，以保證安全使用。

SAF89R59減速機電機機械性能檢驗：振動、噪音、軸跳動、外觀質量；自鎖減速機

SAF89R59減速機電機電氣性能檢驗：

SAF89R59減速機電機裝箱檢驗：平鍵一支、軸套一支、使用說明書及產品合格證一份。

SAF89R59減速機電機運行過程中，需要相應的防護措施，注意電機及減電機可能帶電、裸露甚至活動的部件及高溫表面的危險，這些可能導致重傷或者死亡。所有與運輸入庫、安裝/裝配、接線、調試、維修和維護有關的作業須由具備資質的專業人員進行，并務必注意下列事項：與此有關的詳細操作手冊；SAF89R59減速機電機上的警告和安全提示牌；所有其他屬于驅動設備的設計資料、調試指南與接線圖；與設備相關的規定和要求；有關安全和事故防范的國家/地區性規定；嚴格安裝受到損壞的產品；立即向承運公司就損壞進行索賠。伺服電機渦輪渦桿減速機

SAF89R59減速電機型號：

YQSAF87R57-Y63M4，YQSAF87R57-Y71M4，YQSAF87R57-Y80M4，YQSAF87R57-Y90M4，YQSAF87RF57-Y0.12KW，YQSAF87RF57-Y0.18KW，YQSAF87RF57-Y0.25KW，YQSAF87RF57-Y0.37KW，YQSAF87RF57-Y0.55KW，YQSAF87RF57-Y0.75KW，YQSAF87RF57-Y1.1KW，YQSAF87RF57-Y1.5KW，YQSAF87RF57-Y63M4，YQSAF87RF57-Y71M4，YQSAF87RF57-Y80M4，YQSAF87RF57-Y90M4，YQSAF87RF57-YB63M4，YQSAF87RF57-YB71M4，YQSAF87RF57-YB80M4，YQSAF87RF57-YB90S4，YQSAF87RF57-YDP63M4，YQSAF87RF57-YDP71M4，YQSAF87RF57-YDP80M4，YQSAF87RF57-YDP90S4，YQSAF87RF57-YE63M4，YQSAF87RF57-YE71M4，YQSAF87RF57-YE80M4，YQSAF87RF57-YE90S4，YQSAF87RF57-YEJ63M4，YQSAF87RF57-YEJ71M4，YQSAF87RF57-YEJ80M4，YQSAF87RF57-YEJ90S4，YQSAF87RF57-YEJB63M4，YQSAF87RF57-YEJB71M4，YQSAF87RF57-YEJB80M4，YQSAF87RF57-YEJB90S4，YQSAF87RF57-YP63M4，YQSAF87RF57-YP71M4，YQSAF87RF57-YP80M4，YQSAF87RF57-YP90S4，YQSAF87RF57-YPB63M4，YQSAF87RF57-YPB71M4，YQSAF87RF57-YPB80M4，YQSAF87RF57-YPB90S4，YQSAF87RF57-YPE63M4，YQSAF87RF57-YPE71M4，YQSAF87RF57-YPE80M4，YQSAF87RF57-YPE90S4，YQSAF87RF57-YSAF63M4，YQSAF87RF57-YSAF71M4，YQSAF87RF57-YSAF80M4，YQSAF87RF57-YSAF90S4，YQSAF87RF57-YVB63M4，YQSAF87RF57-YVB71M4，YQSAF87RF57-YVB80M4，YQSAF87RF57-YVB90S4，YQSAF87RF57-YVP63M4，YQSAF87RF57-YVP71M4，YQSAF87RF57-YVP80M4，YQSAF87RF57-YVP90S4，ASAF87R57-Y63M4，ASAF87R57-Y71M4，ASAF87R57-Y80M4，ASAF87R57-Y90M4，ASAF87RF57-Y0.12KW，ASAF87RF57-Y0.18KW，ASAF87RF57-Y0.25KW，ASAF87RF57-Y0.37KW，ASAF87RF57-Y0.55KW，ASAF87RF57-Y0.75KW，ASAF87RF57-Y1.1KW，ASAF87RF57-Y1.5KW，ASAF87RF57-Y63M4，ASAF87RF57-Y71M4，ASAF87RF57-Y80M4，ASAF87RF57-Y90M4，ASAF87RF57-YB63M4，ASAF87RF57-YB71M4，ASAF87RF57-YB80M4，ASAF87RF57-YB90S4，ASAF87RF57-YDP63M4，ASAF87RF57-YDP71M4，ASAF87RF57-YDP80M4，ASAF87RF57-YDP90S4，ASAF87RF57-YE63M4，ASAF87RF57-YE71M4，ASAF87RF57-YE80M4，ASAF87RF57-YE90S4，ASAF87RF57-YEJ63M4，ASAF87RF57-YEJ71M4，ASAF87RF57-YEJ80M4，ASAF87RF57-YEJ90S4，ASAF87RF57-YEJB63M4，ASAF87RF57-YEJB71M4，ASAF87RF57-YEJB80M4，ASAF87RF57-YEJB90S4，ASAF87RF57-YP63M4，ASAF87RF57-YP71M4，ASAF87RF57-YP80M4，ASAF87RF57-YP90S4，ASAF87RF57-YPB63M4，ASAF87RF57-YPB71M4，ASAF87RF57-YPB80M4，ASAF87RF57-YPB90S4，ASAF87RF57-YPE63M4，ASAF87RF57-YPE71M4，ASAF87RF57-YPE80M4，ASAF87RF57-YPE90S4，ASAF87RF57-YSAF63M4，ASAF87RF57-YSAF71M4，ASAF87RF57-YSAF80M4，ASAF87RF57-YSAF90S4，ASAF87RF57-YVB63M4，ASAF87RF57-YVB71M4，ASAF87RF57-YVB80M4，ASAF87RF57-YVB90S4，ASAF87RF57-YVP63M4，ASAF87RF57-YVP71M4，ASAF87RF57-YVP80M4，ASAF87RF57-YVP90S4，SSAF87R57-Y63M4，SSAF87R57-Y71M4，SSAF87R57-Y80M4，SSAF87R57-Y90M4，SSAF87RF57-Y0.12KW，SSAF87RF57-Y0.18KW，SSAF87RF57-Y0.25KW，SSAF87RF57-Y0.37KW，SSAF87RF57-Y0.55KW，SSAF87RF57-Y0.75KW，SSAF87RF57-Y1.1KW，SSAF87RF57-Y1.5KW，SSAF87RF57-Y63M4，SSAF87RF57-Y71M4，SSAF87RF57-Y80M4，SSAF87RF57-Y90M4，SSAF87RF57-YB63M4，SSAF87RF57-YB71M4，SSAF87RF57-YB80M4，SSAF87RF57-YB90S4，SSAF87RF57-YDP63M4，SSAF87RF57-YDP71M4，SSAF87RF57-YDP80M4，SSAF87RF57-YDP90S4，SSAF87RF57-YE63M4，SSAF87RF57-YE71M4，SSAF87RF57-YE80M4，SSAF87RF57-YE90S4，SSAF87RF57-YEJ63M4，SSAF87RF57-YEJ71M4，SSAF87RF57-YEJ80M4，SSAF87RF57-YEJ90S4，SSAF87RF57-YEJB63M4，SSAF87RF57-YEJB71M4，SSAF87RF57-YEJB80M4，SSAF87RF57-YEJB90S4，SSAF87RF57-YP63M4，SSAF87RF57-YP71M4，SSAF87RF57-YP80M4，SSAF87RF57-YP90S4，SSAF87RF57-YPB63M4，SSAF87RF57-YPB71M4，SSAF87RF57-YPB80M4，SSAF87RF57-YPB90S4，SSAF87RF57-YPE63M4，SSAF87RF57-YPE71M4，SSAF87RF57-YPE80M4，SSAF87RF57-YPE90S4，SSAF87RF57-YSAF63M4，SSAF87RF57-YSAF71M4，SSAF87RF57-YSAF80M4，SSAF87RF57-YSAF90S4，SSAF87RF57-YVB63M4，SSAF87RF57-YVB71M4，SSAF87RF57-YVB80M4，SSAF87RF57-YVB90S4，SSAF87RF57-YVP63M4，SSAF87RF57-YVP71M4，SSAF87RF57-YVP80M4，SSAF87RF57-YVP90S4，XDSAF87R57-Y63M4，XDSAF87R57-Y71M4，XDSAF87R57-Y80M4，XDSAF87R57-Y90M4，XDSAF87RF57-Y0.12KW，XDSAF87RF57-Y0.18KW，XDSAF87RF57-Y0.25KW，XDSAF87RF57-Y0.37KW，XDSAF87RF57-Y0.55KW，XDSAF87RF57-Y0.75KW，XDSAF87RF57-Y1.1KW，XDSAF87RF57-Y1.5KW，XDSAF87RF57-Y63M4，XDSAF87RF57-Y71M4，XDSAF87RF57-Y80M4，XDSAF87RF57-Y90M4，XDSAF87RF57-YB63M4，XDSAF87RF57-YB71M4，XDSAF87RF57-YB80M4，XDSAF87RF57-YB90S4，XDSAF87RF57-YDP63M4，XDSAF87RF57-YDP71M4，XDSAF87RF57-YDP80M4，XDSAF87RF57-YDP90S4，XDSAF87RF57-YE63M4，XDSAF87RF57-YE71M4，XDSAF87RF57-YE80M4，XDSAF87RF57-YE90S4，XDSAF87RF57-YEJ63M4，XDSAF87RF57-YEJ71M4，XDSAF87RF57-YEJ80M4，XDSAF87RF57-YEJ90S4，XDSAF87RF57-YEJB63M4，XDSAF87RF57-YEJB71M4，XDSAF87RF57-YEJB80M4，XDSAF87RF57-YEJB90S4，XDSAF87RF57-YP63M4，XDSAF87RF57-YP71M4，XDSAF87RF57-YP80M4，XDSAF87RF57-YP90S4，XDSAF87RF57-YPB63M4，XDSAF87RF57-YPB71M4，XDSAF87RF57-YPB80M4，XDSAF87RF57-YPB90S4，XDSAF87RF57-YPE63M4，XDSAF87RF57-YPE71M4，XDSAF87RF57-YPE80M4，XDSAF87RF57-YPE90S4，XDSAF87RF57-YSAF63M4，XDSAF87RF57-YSAF71M4，XDSAF87RF57-YSAF80M4，XDSAF87RF57-YSAF90S4，XDSAF87RF57-YVB63M4，XDSAF87RF57-YVB71M4，XDSAF87RF57-YVB80M4，XDSAF87RF57-YVB90S4，XDSAF87RF57-YVP63M4，XDSAF87RF57-YVP71M4，XDSAF87RF57-YVP80M4，XDSAF87RF57-YVP90S4，WSAF87R57-Y63M4，WSAF87R57-Y71M4，WSAF87R57-Y80M4，WSAF87R57-Y90M4，WSAF87RF57-Y0.12KW，WSAF87RF57-Y0.18KW，WSAF87RF57-Y0.25KW，WSAF87RF57-Y0.37KW，WSAF87RF57-Y0.55KW，WSAF87RF57-Y0.75KW，WSAF87RF57-Y1.1KW，WSAF87RF57-Y1.5KW，WSAF87RF57-Y63M4，WSAF87RF57-Y71M4，WSAF87RF57-Y80M4，WSAF87RF57-Y90M4，WSAF87RF57-YB63M4，WSAF87RF57-YB71M4，WSAF87RF57-YB80M4，WSAF87RF57-YB90S4，WSAF87RF57-YDP63M4，WSAF87RF57-YDP71M4，WSAF87RF57-YDP80M4，WSAF87RF57-YDP90S4，WSAF87RF57-YE63M4，WSAF87RF57-YE71M4，WSAF87RF57-YE80M4，WSAF87RF57-YE90S4，WSAF87RF57-YEJ63M4，WSAF87RF57-YEJ71M4，WSAF87RF57-YEJ80M4，WSAF87RF57-YEJ90S4，WSAF87RF57-YEJB63M4，WSAF87RF57-YEJB71M4，WSAF87RF57-YEJB80M4，WSAF87RF57-YEJB90S4，WSAF87RF57-YP63M4，WSAF87RF57-YP71M4，WSAF87RF57-YP80M4，WSAF87RF57-YP90S4，WSAF87RF57-YPB63M4，WSAF87RF57-YPB71M4，WSAF87RF57-YPB80M4，WSAF87RF57-YPB90S4，WSAF87RF57-YPE63M4，WSAF87RF57-YPE71M4，WSAF87RF57-YPE80M4，WSAF87RF57-YPE90S4，WSAF87RF57-YSAF63M4，WSAF87RF57-YSAF71M4，WSAF87RF57-YSAF80M4，WSAF87RF57-YSAF90S4，WSAF87RF57-YVB63M4，WSAF87RF57-YVB71M4，WSAF87RF57-YVB80M4，WSAF87RF57-YVB90S4，WSAF87RF57-YVP63M4，WSAF87RF57-YVP71M4，WSAF87RF57-YVP80M4，WSAF87RF57-YVP90S4，JCSAF87R57-Y63M4，JCSAF87R57-Y71M4，JCSAF87R57-Y80M4，JCSAF87R57-Y90M4，JCSAF87RF57-Y0.12KW，JCSAF87RF57-Y0.18KW，JCSAF87RF57-Y0.25KW，JCSAF87RF57-Y0.37KW，JCSAF87RF57-Y0.55KW，JCSAF87RF57-Y0.75KW，JCSAF87RF57-Y1.1KW，JCSAF87RF57-Y1.5KW，JCSAF87RF57-Y63M4，JCSAF87RF57-Y71M4，JCSAF87RF57-Y80M4，JCSAF87RF57-Y90M4，JCSAF87RF57-YB63M4，JCSAF87RF57-YB71M4，JCSAF87RF57-YB80M4，JCSAF87RF57-YB90S4，JCSAF87RF57-YDP63M4，JCSAF87RF57-YDP71M4，JCSAF87RF57-YDP80M4，JCSAF87RF57-YDP90S4，JCSAF87RF57-YE63M4，JCSAF87RF57-YE71M4，JCSAF87RF57-YE80M4，JCSAF87RF57-YE90S4，JCSAF87RF57-YEJ63M4，JCSAF87RF57-YEJ71M4，JCSAF87RF57-YEJ80M4，JCSAF87RF57-YEJ90S4，JCSAF87RF57-YEJB63M4，JCSAF87RF57-YEJB71M4，JCSAF87RF57-YEJB80M4，JCSAF87RF57-YEJB90S4，JCSAF87RF57-YP63M4，JCSAF87RF57-YP71M4，JCSAF87RF57-YP80M4，JCSAF87RF57-YP90S4，JCSAF87RF57-YPB63M4，JCSAF87RF57-YPB71M4，JCSAF87RF57-YPB80M4，JCSAF87RF57-YPB90S4，JCSAF87RF57-YPE63M4，JCSAF87RF57-YPE71M4，JCSAF87RF57-YPE80M4，JCSAF87RF57-YPE90S4，JCSAF87RF57-YSAF63M4，JCSAF87RF57-YSAF71M4，JCSAF87RF57-YSAF80M4，JCSAF87RF57-YSAF90S4，JCSAF87RF57-YVB63M4，JCSAF87RF57-YVB71M4，JCSAF87RF57-YVB80M4，JCSAF87RF57-YVB90S4，JCSAF87RF57-YVP63M4，JCSAF87RF57-YVP71M4，JCSAF87RF57-YVP80M4，JCSAF87RF57-YVP90S4，NSAF87R57-Y63M4，NSAF87R57-Y71M4，NSAF87R57-Y80M4，NSAF87R57-Y90M4，NSAF87RF57-Y0.12KW，NSAF87RF57-Y0.18KW，NSAF87RF57-Y0.25KW，NSAF87RF57-Y0.37KW，NSAF87RF57-Y0.55KW，NSAF87RF57-Y0.75KW，NSAF87RF57-Y1.1KW，NSAF87RF57-Y1.5KW，NSAF87RF57-Y63M4，NSAF87RF57-Y71M4，NSAF87RF57-Y80M4，NSAF87RF57-Y90M4，NSAF87RF57-YB63M4，NSAF87RF57-YB71M4，NSAF87RF57-YB80M4，NSAF87RF57-YB90S4，NSAF87RF57-YDP63M4，NSAF87RF57-YDP71M4，NSAF87RF57-YDP80M4，NSAF87RF57-YDP90S4，NSAF87RF57-YE63M4，NSAF87RF57-YE71M4，NSAF87RF57-YE80M4，NSAF87RF57-YE90S4，NSAF87RF57-YEJ63M4，NSAF87RF57-YEJ71M4，NSAF87RF57-YEJ80M4，NSAF87RF57-YEJ90S4，NSAF87RF57-YEJB63M4，NSAF87RF57-YEJB71M4，NSAF87RF57-YEJB80M4，NSAF87RF57-YEJB90S4，NSAF87RF57-YP63M4，NSAF87RF57-YP71M4，NSAF87RF57-YP80M4，NSAF87RF57-YP90S4，NSAF87RF57-YPB63M4，NSAF87RF57-YPB71M4，NSAF87RF57-YPB80M4，NSAF87RF57-YPB90S4，NSAF87RF57-YPE63M4，NSAF87RF57-YPE71M4，NSAF87RF57-YPE80M4，NSAF87RF57-YPE90S4，NSAF87RF57-YSAF63M4，NSAF87RF57-YSAF71M4，NSAF87RF57-YSAF80M4，NSAF87RF57-YSAF90S4，NSAF87RF57-YVB63M4，NSAF87RF57-YVB71M4，NSAF87RF57-YVB80M4，NSAF87RF57-YVB90S4，NSAF87RF57-YVP63M4，NSAF87RF57-YVP71M4，NSAF87RF57-YVP80M4，NSAF87RF57-YVP90S4，SWAF87RW57-Y63M4，SWAF87RW57-Y71M4，SWAF87RW57-Y80M4，SWAF87RW57-Y90M4，SWAF87RWF57-Y0.12KW，SWAF87RWF57-Y0.18KW，SWAF87RWF57-Y0.25KW，SWAF87RWF57-Y0.37KW，SWAF87RWF57-Y0.55KW，SWAF87RWF57-Y0.75KW，SWAF87RWF57-Y1.1KW，SWAF87RWF57-Y1.5KW，SWAF87RWF57-Y63M4，SWAF87RWF57-Y71M4，SWAF87RWF57-Y80M4，SWAF87RWF57-Y90M4，SWAF87RWF57-YB63M4，SWAF87RWF57-YB71M4，SWAF87RWF57-YB80M4，SWAF87RWF57-YB90S4，SWAF87RWF57-YDP63M4，SWAF87RWF57-YDP71M4，SWAF87RWF57-YDP80M4，SWAF87RWF57-YDP90S4，SWAF87RWF57-YE63M4，SWAF87RWF57-YE71M4，SWAF87RWF57-YE80M4，SWAF87RWF57-YE90S4，SWAF87RWF57-YEJ63M4，SWAF87RWF57-YEJ71M4，SWAF87RWF57-YEJ80M4，SWAF87RWF57-YEJ90S4，SWAF87RWF57-YEJB63M4，SWAF87RWF57-YEJB71M4，SWAF87RWF57-YEJB80M4，SWAF87RWF57-YEJB90S4，SWAF87RWF57-YP63M4，SWAF87RWF57-YP71M4，SWAF87RWF57-YP80M4，SWAF87RWF57-YP90S4，SWAF87RWF57-YPB63M4，SWAF87RWF57-YPB71M4，SWAF87RWF57-YPB80M4，SWAF87RWF57-YPB90S4，SWAF87RWF57-YPE63M4，SWAF87RWF57-YPE71M4，SWAF87RWF57-YPE80M4，SWAF87RWF57-YPE90S4，SWAF87RWF57-YSAF63M4，SWAF87RWF57-YSAF71M4，SWAF87RWF57-YSAF80M4，SWAF87RWF57-YSAF90S4，SWAF87RWF57-YVB63M4，SWAF87RWF57-YVB71M4，SWAF87RWF57-YVB80M4，SWAF87RWF57-YVB90S4，SWAF87RWF57-YVP63M4，SWAF87RWF57-YVP71M4，SWAF87RWF57-YVP80M4，SWAF87RWF57-YVP90S4，SAF89R59-Y63M4，SAF89R59-Y71M4，SAF89R59-Y80M4，SAF89R59-Y90M4，SAF89RF59-Y0.12KW，SAF89RF59-Y0.18KW，SAF89RF59-Y0.25KW，SAF89RF59-Y0.37KW，SAF89RF59-Y0.55KW，SAF89RF59-Y0.75KW，SAF89RF59-Y1.1KW，SAF89RF59-Y1.5KW，SAF89RF59-Y63M4，SAF89RF59-Y71M4，SAF89RF59-Y80M4，SAF89RF59-Y90M4，SAF89RF59-YB63M4，SAF89RF59-YB71M4，SAF89RF59-YB80M4，SAF89RF59-YB90S4，SAF89RF59-YDP63M4，SAF89RF59-YDP71M4，SAF89RF59-YDP80M4，SAF89RF59-YDP90S4，SAF89RF59-YE63M4，SAF89RF59-YE71M4，SAF89RF59-YE80M4，SAF89RF59-YE90S4，SAF89RF59-YEJ63M4，SAF89RF59-YEJ71M4，SAF89RF59-YEJ80M4，SAF89RF59-YEJ90S4，SAF89RF59-YEJB63M4，SAF89RF59-YEJB71M4，SAF89RF59-YEJB80M4，SAF89RF59-YEJB90S4，SAF89RF59-YP63M4，SAF89RF59-YP71M4，SAF89RF59-YP80M4，SAF89RF59-YP90S4，SAF89RF59-YPB63M4，SAF89RF59-YPB71M4，SAF89RF59-YPB80M4，SAF89RF59-YPB90S4，SAF89RF59-YPE63M4，SAF89RF59-YPE71M4，SAF89RF59-YPE80M4，SAF89RF59-YPE90S4，SAF89RF59-YSAF63M4，SAF89RF59-YSAF71M4，SAF89RF59-YSAF80M4，SAF89RF59-YSAF90S4，SAF89RF59-YVB63M4，SAF89RF59-YVB71M4，SAF89RF59-YVB80M4，SAF89RF59-YVB90S4，SAF89RF59-YVP63M4，SAF89RF59-YVP71M4，SAF89RF59-YVP80M4，SAF89RF59-YVP90S4。

SAF89R59減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jinmiba.com/product/list-safxiliejiansuji-cn.html

推薦型號：S89減速機
